G8JCF's Software Defined Radio

Download Latest Version
19 Jan 2017
 Ver 1.00 Build 274

G8JCFSDR Build 274 Full Install (XP/VISTA/Win 7/8/10 Compatible)     Quick Start Guide (Updated 3/2017)

Error 13 Problems ?
Build 274 Full Install

Error 91 Problems ? Install DX8VB.DLL
or Build 274 Full Install

Performance Problems ? Install the iSPL
or  Build 274 Full Install

Windows 10 issues ? - Set G8JCFSDR.EXE to "Run as an Administrator"

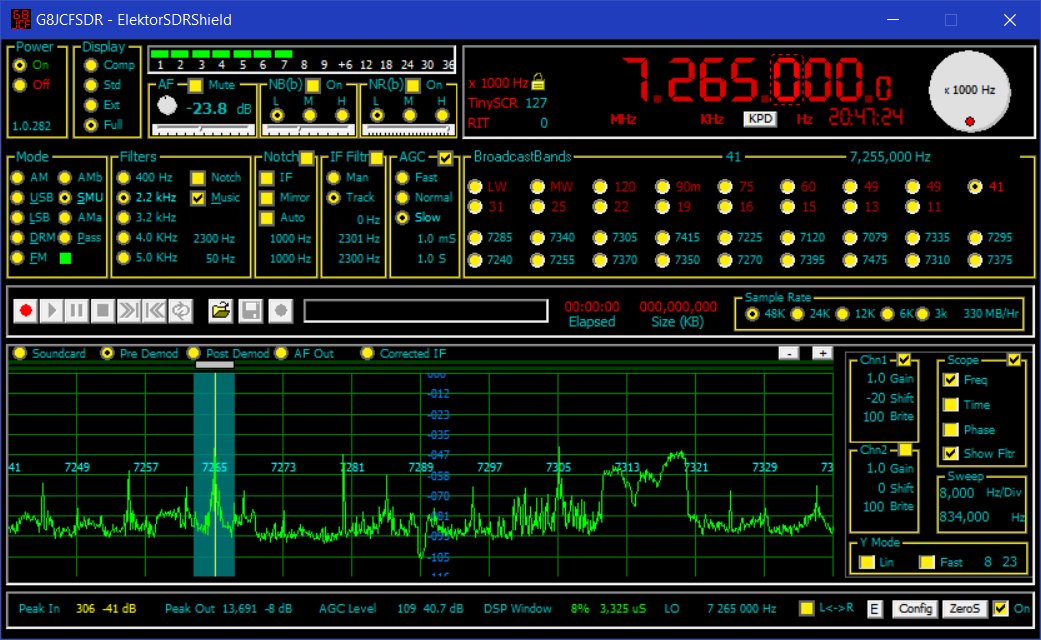

Special Support for the Elektor SDR Shield - aka SDR Reloaded - 7/2016

The G8JCFSDR is an SDR which uses RF front-end hardware to down-convert RF frequencies into the 0~24KHz range accepted by most PC soundcards. The PC reads in the soundcard signal and carries out all of the filtering, demodulation, AGC, and notch filtering in software rather than hardware as would be the case in a traditional receiver. Because the receiver is all software, there are things you can do which would be almost impossible in h/w, how about -100 dB filters for a start !

This is Peter Carnegie's (G8JCF) Software Defined Radio.

The G8JCFSDR works with very many SDR H/W front-ends, eg FiFiSDR, Pappradio V1 & V2, PMSDR, Elektor SDR, DRT1, DRB30, DRB32, Soft66AD(M), Lazy Dog LD1, EXTIO_*.DLL supported H/W

Special support has been built in for Ulf Schneider's DRT1, Burkhard Kainka's ELEKTOR 3/2004, 5/2007, 7/2016 and the NTI DRB30/32, PappradioV1 hardware down-converters. The G8JCFSDR will also work with home-brew IQ and NON-IQ Receivers using AD9835/AD9850/AD9851/AD9951 DDS Chips, and with CY27EE16 PLL generators. Full USB support using FTDI US232C RS232/USB converters is supported with full high-speed Bit-Bang mode

Burkhard Kainka's ELEKTOR 3/04 H/W is available from modul-bus for about EUR 119-00 (GBP 81-00, USD 153-00)
Ulf Schneider's front-end H/W is available from sat-schneider for about EUR 250-00 (GBP 171-00, USD 320-00).
Rudolf Ille's excellent fully boxed down-converter, the DRB30 and the even better DRB32 is available from NTI DRB30 for about EUR 300-00

The DRT1 is a very high performance 0~30MHz to 45MHz IF to 12KHz final IF down-converter. I have designed several SDR h/w front-ends myself, and I can truly recommend Ulf's DRT1 as one of the best down-converters you can easily buy. The NTI DRB30 is very similar in performance and comes completely boxed.
Burkhard's ELEKTOR 3/04 front-end is very cost effective, and certainly works for the casual user especially when front-ended by a decent pre-selector, but with only a 455KHz IF, it suffers from image or mirror problems. Burkhard's latest IQ front-end, ELEKTOR 5/07, is much better and costs less - highly recommended
